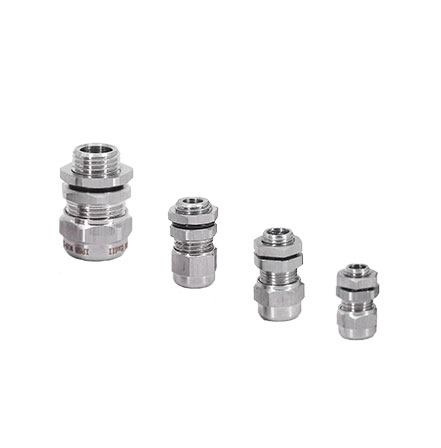

Explosion Proof Cable Gland Hazardous Area Cable Glands SGN Series

Name: Explosion Proof Cable Gland Hazardous Area Cable Glands SGN Series
Brand: SUREALL TECHNOLOGY LIMITED

Advantages

Class I Division 1,Group A,B,C,D

Zone 1, Zone 2

Class II Division 1,Group E,F,G

Zone 21, Zone 22

Class III

Type 4X，IP66

Ex d IIC Gb

Max. M63x1.5 or NPT2"

Ex tb IIIC Db IP66

Specification 

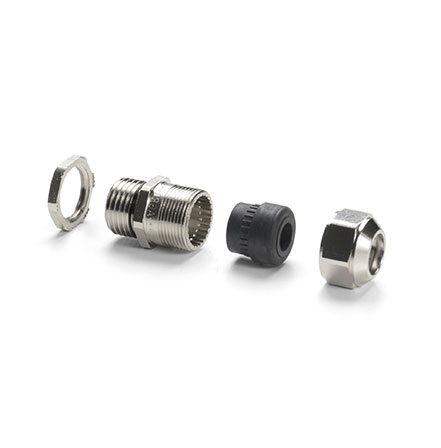

With dual sealing for both the cable entry point and junction end area entering to the enclosure, SGN series explosion proof cable gland is tapped with flame proof Ex d threaded joint surface biting with thread at the cable entry of explosion proof enclosure including metal material explosion proof lighting, metallic explosion proof junction box and explosion proof panel. This flameproof cable gland can be used as hazardous area cable glands for non-armored cable based on cable wiring method.

 Features

Selection Table

Data Sheet

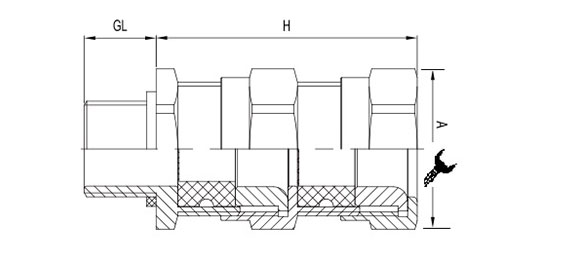

Outline Dimensions

Features
Explosion Proof Cable Gland SGN Series

Rigorous connection structure for cable wiring solution

Wide thread size from M16x1.5 to M63x1.5, from NPT 3/8" to NPT 2"

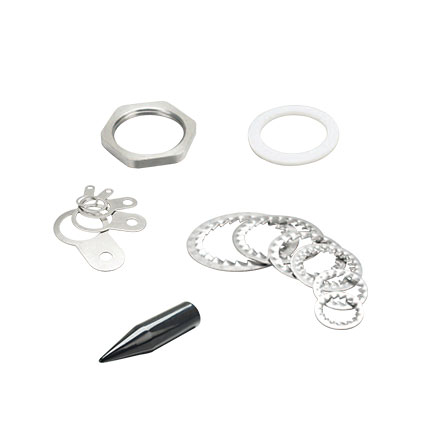

Optional seal washer, serrated washer, locknut, earth lug and sheath

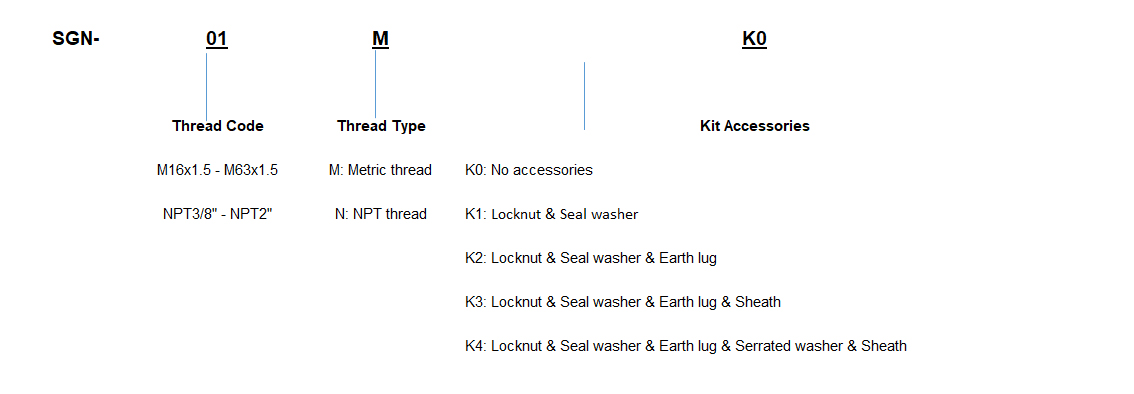

Selection Table
Explosion Proof Cable Gland SGN Series

Data Sheet
Explosion Proof Cable Gland SGN Series

Compliaces	IEC Standard IEC60079-0, IEC60079-1, IEC60079-7, IEC60079-31 Ex d IIC Gb Ex tb IIIC Db IP66 Zone 1, Zone 2 Zone 21, Zone 22
	EU Standard EN60079-0, EN60079-1, EN60079-7, EN60079-31 II 2 G Ex d IIC Gb II 2 D Ex tb IIIC Db IP66 Zone 1, Zone 2 Zone 21, Zone 22
	NEC & CEC Standard Class I, Div.1, Group A, B, C, D Class II, Div.1, Group E, F, G Class III
	UL Standard UL844, UL1598, UL1598A
	CSA Standard CSA C22.2 No.137
Material	Nickel Plated Brass / 304 Stainless Steel / 316 Stainless Steel
IP Grade	Wet Locations, Type 4X, IP66
Ambient Temperature	-40℃~ +100℃ / -40°F ~ +212°F
