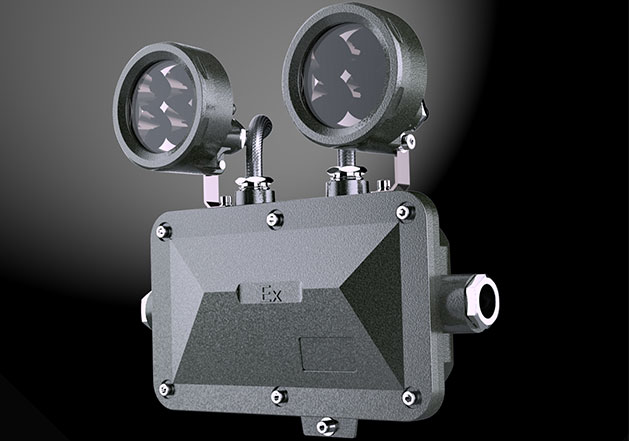

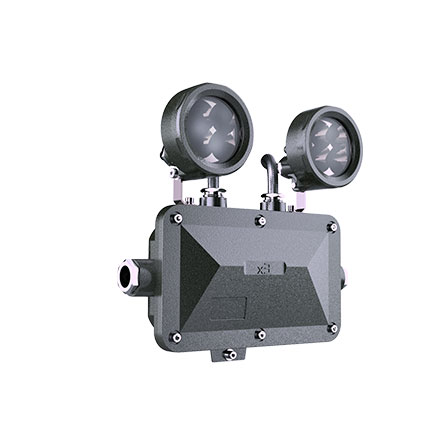

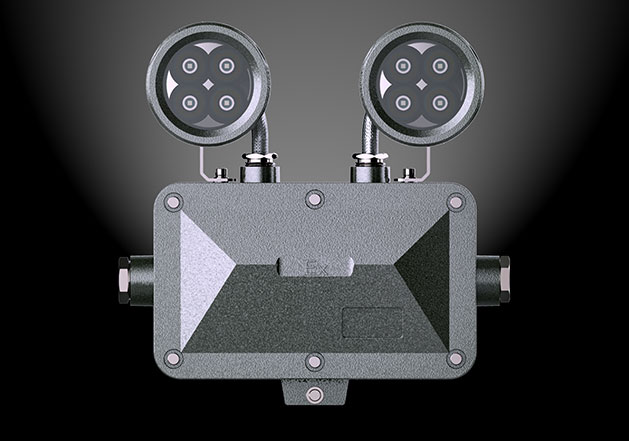

Explosion Proof Led Emergency Bug-eye Lights SEG Series

Name: Explosion Proof Led Emergency Bug-eye Lights SEG Series
Brand: SUREALL TECHNOLOGY LIMITED

Advantages

Class I, Division 1, Groups C, D

Ex tD A21 T80℃ Db IP66

Class I, Division 2, Groups A, B, C, D

Zone 1, Zone 2

Class II, Division 1, Groups E, F, G

Zone 21, Zone 22

Class II, Division 2, Groups F, G

-40℃ ~ +55℃

Class III

Type 4X，IP66

Ex d IIB T6 Gb

LED 2x5W,120lm/W

Specification 

SEG series explosion proof emergency lighting is a essential explosion proof lighting for emergency usage when power off in hazardous location lighting contains paint booth lights and gas station lights. Designed with double insulated lights, led explosion lamp, 120 or 180 minutes back-up battery and flame proof housing, this light is flame proof light and explosion proof led lights whose used lighting zone can be class 1 div 1 class 1 div 2 emergency lighting and also zone 1 and zone 2 atex emergency lighting.

 Features

Selection Table

Data Sheet

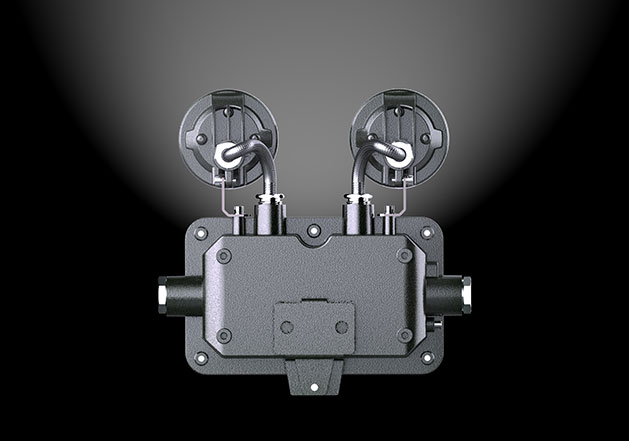

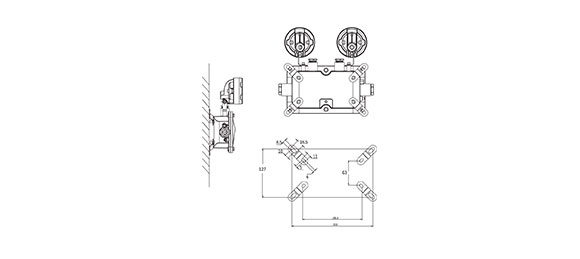

Mounting

Features
Explosion Proof Emergency Lights SEG Series

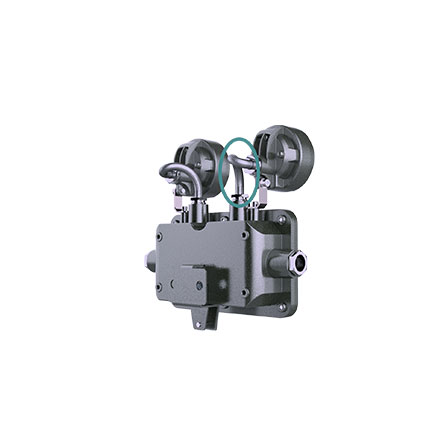

Two-eye lighting head with adjustable flexible conduit

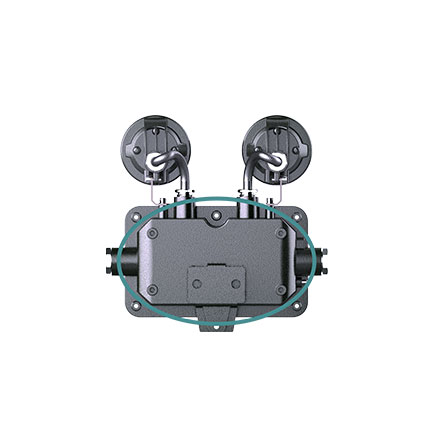

Entire separation for lamp part and power driver part

Rigid flame proof aluminum enclosure for unconditional safety

Selection Table
Explosion Proof Emergency Lights SEG Series

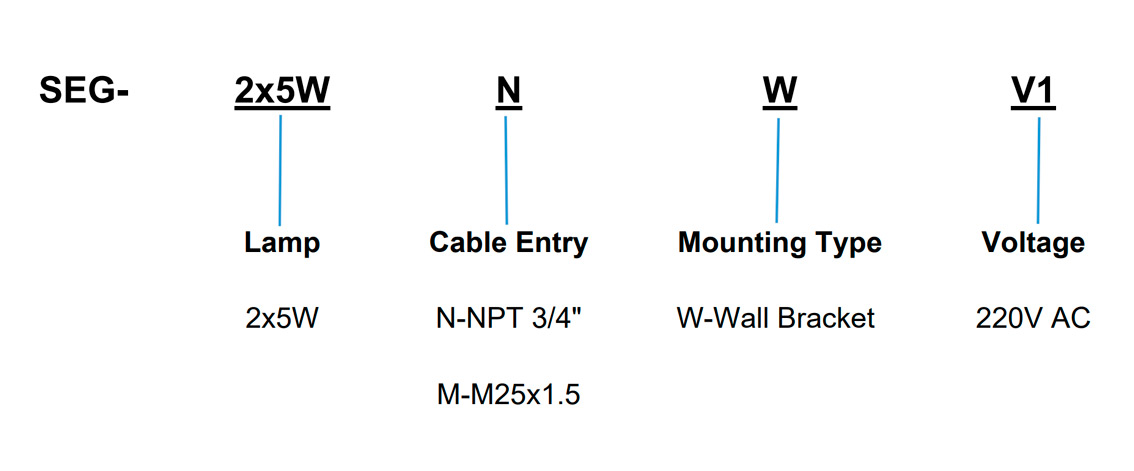

Selection Table of Explosion Proof Emergency Light SEG Series

Data Sheet
Explosion Proof Emergency Lights SEG Series

Compliance	IEC Standard IEC60079-0, IEC60079-1, IEC60079-11 Ex d IIB T6 Gb Ex tD A21 T80℃ Db IP66 Zone 1, Zone 2 Zone 21, Zone 22
	EU Standard EN60079-0, EN60079-1, EN60079-11 II 2 G Ex d IIB T6 Gb II 2 D Ex tD IIIB A21 T80℃ Db IP66 Zone 1, Zone 2 Zone 21, Zone 22
	NEC & CEC Standard Class I, Division 1, Groups C, D Class I, Division 2, Groups A, B, C, D Class II, Division 1, Groups E, F, G Class II, Division 2, Groups F, G Class III
	UL Standard UL844, UL1598, UL1598A
	CSA Standard CSA C22.2 No.137
Rated Voltage	220V AC 50/60Hz
Wattage(W)	2x5W
Emergency Duration	90min / 180min
Battery Specification	Lithium battery
IP Grade	Wet Locations, Type 4X, IP66
Ambient Temperature	-40℃~ +55℃ /-40°F ~ +131°F
Cable Entry	NPT 3/4” or M25X1.5
Terminals	Terminal blocks ≤ 2.5mm², cable diameter 10-14mm

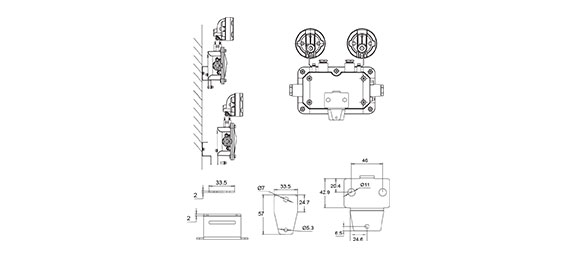

Mounting Type	Wall Bracket
