Explosion Proof Led Street Light Class 1 Div 1 Zone 1 SSL Series

Name: Explosion Proof Led Street Light Class 1 Div 1 Zone 1 SSL Series
Brand: SUREALL TECHNOLOGY LIMITED

Advantages

Class I, Div 1, Group A, B, C, D

Zone 1,Zone 2

Class II, Div.1, Group E, F, G

Zone 21, Zone 22

Class III

-40℃ ~ +55℃

Ex d e mb IIC T6 Gb

Type 4X，IP66

Ex t IIIC T85℃ Db IP66

LED 80W- 300W,120lm/W,3000K-5000K

Specification 

Looked as a shoebox and street light shape with a fitted connection module for lighting pole to install on the inner and outer road of hazardous locations, SSL series explosion proof street light, also called flame proof street light, is a particular kind to fill in the market need blanks for road lighting in refinery plants areas to be able for quick connection to any kinds of lighting pole with different heights.

 Features

Selection Table

Data Sheet

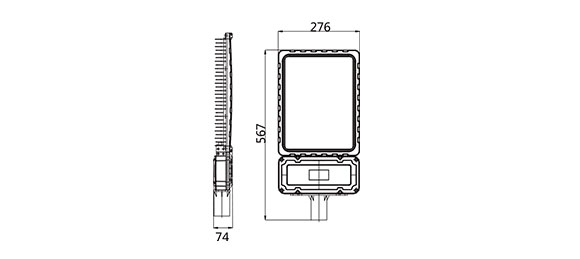

Mounting

Features
Explosion Proof Street Light SSL Series

One-time die-cast aluminum molding for the housing structure

Professional overall arrangement for led chips for utmost lumens efficiency

Considerate connection head to fit in lighting pole

High resistance Ex d flame proof housing for led driver

Selection Table
Explosion Proof Street Light SSL Series

Model	Lumens	Wattage	Lumens per Watt	Equivalent HID Luminaire
SSL-80W	9600	80W	120	320-400W
SSL-100W	12000	100W	120	400W
SSL-120W	14400	120W	120	400-600W
SSL-150W	18000	150W	120	600-750W
SSL-200W	24000	200W	120	750-1000W
SSL-250W	30000	250W	120	＞1000W
SSL-300W	36000	300W	120	＞1000W

Selection Table of Explosion Proof Led Flood Light SSL Series

Data Sheet
Explosion Proof Street Light SSL Series

Compliance	IEC Standard IEC60079-0, IEC60079-1, IEC60079-31, IEC60598-2-1 Ex d e mb IIC T6 Gb Ex t IIIC T85℃ Db IP66 Zone 1, Zone 2 Zone 21, Zone 22
	EU Standard EN60079-0, EN60079-1, EN60079-31,EN60598-2-1 II 2 G Ex d e mb IIC T6 Gb II 2 D Ex t IIIC T85℃ Db IP66 Zone 1, Zone 2 Zone 21, Zone 22
	NEC & CEC Standard Class I, Div 1, Group A, B, C, D Class II, Div.1, Group E, F, G Class III
	UL Standard UL844, UL1598, UL1598A
	CSA Standard CSA C22.2 No.137
Rated Voltage	100-277V AC 50/60Hz 200-480V AC 50/60Hz
Wattage(W)	80W	100W	120W	150W	200W	250W	300W
Lumens(LM)	9600	12000	14400	18000	24000	30000	36000
Color Temperature	5000K/4000K/3000K
IP Grade	Wet Locations, Type 4X, IP66
Ambient Temperature	-40℃~ +55℃ /-40°F ~ +131°F
Cable Entry	NPT 3/4” or M25X1.5 (adaptor for M20x1.5, NPT 1”, NPT1 1/2”)
Terminals	Terminal blocks ≤ 2.5mm², cable diameter 10-14mm
Mounting Type	Stanchion
Beam Angle	120° / 60° / 45° / 30°
